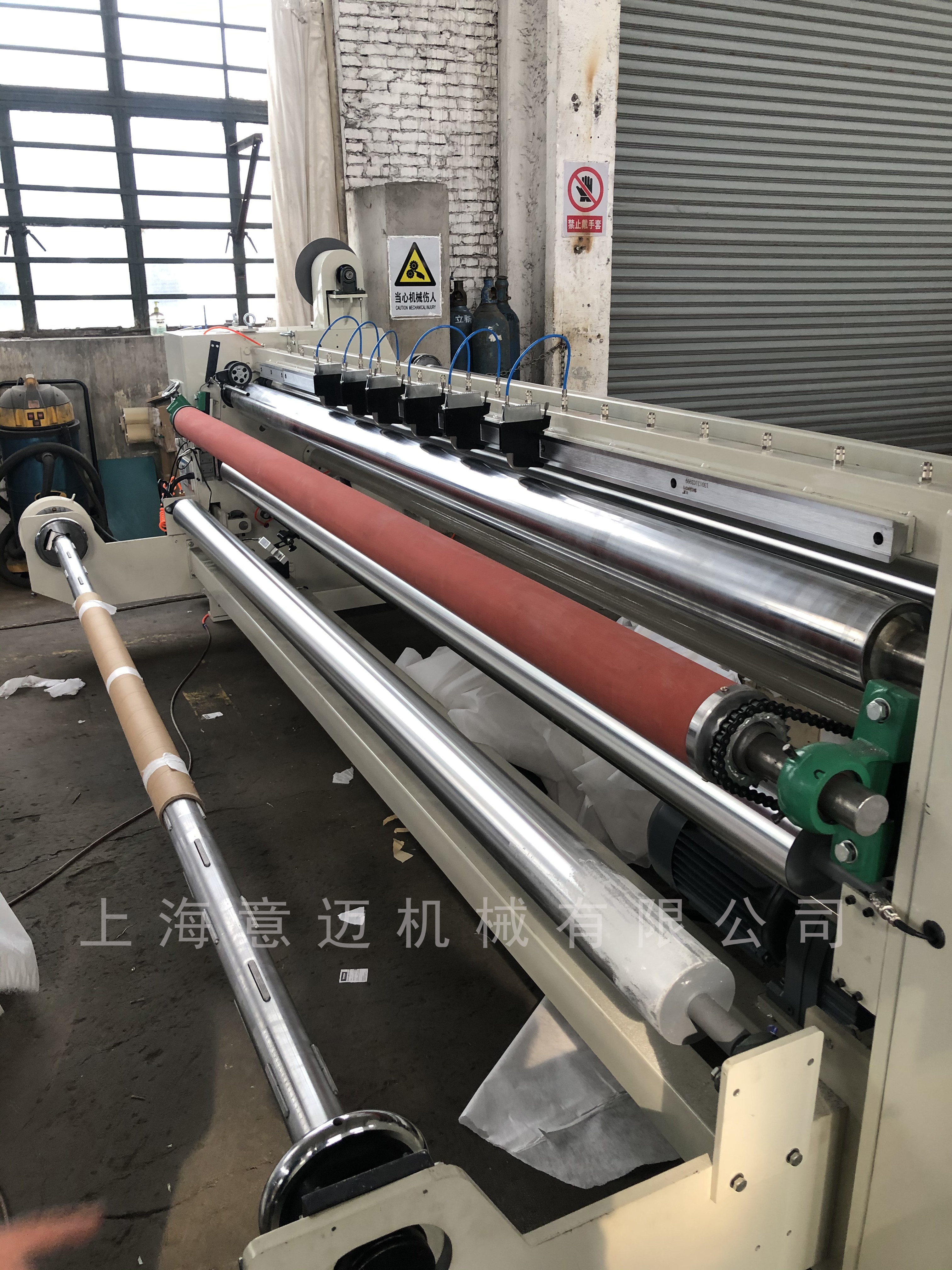

YM07C2型分切机 YM07C2 Slitting Machine
产品用途：用于卷筒无纺布分切复卷成盘。
product usage：Used for cutting and rewinding non-woven fabrics on reels into disks
特点:
characteristic
1.选用剪切圆刀或气压式圆刀(选用)。
Choose shearing circular knife or pneumatic circular knife (optional)

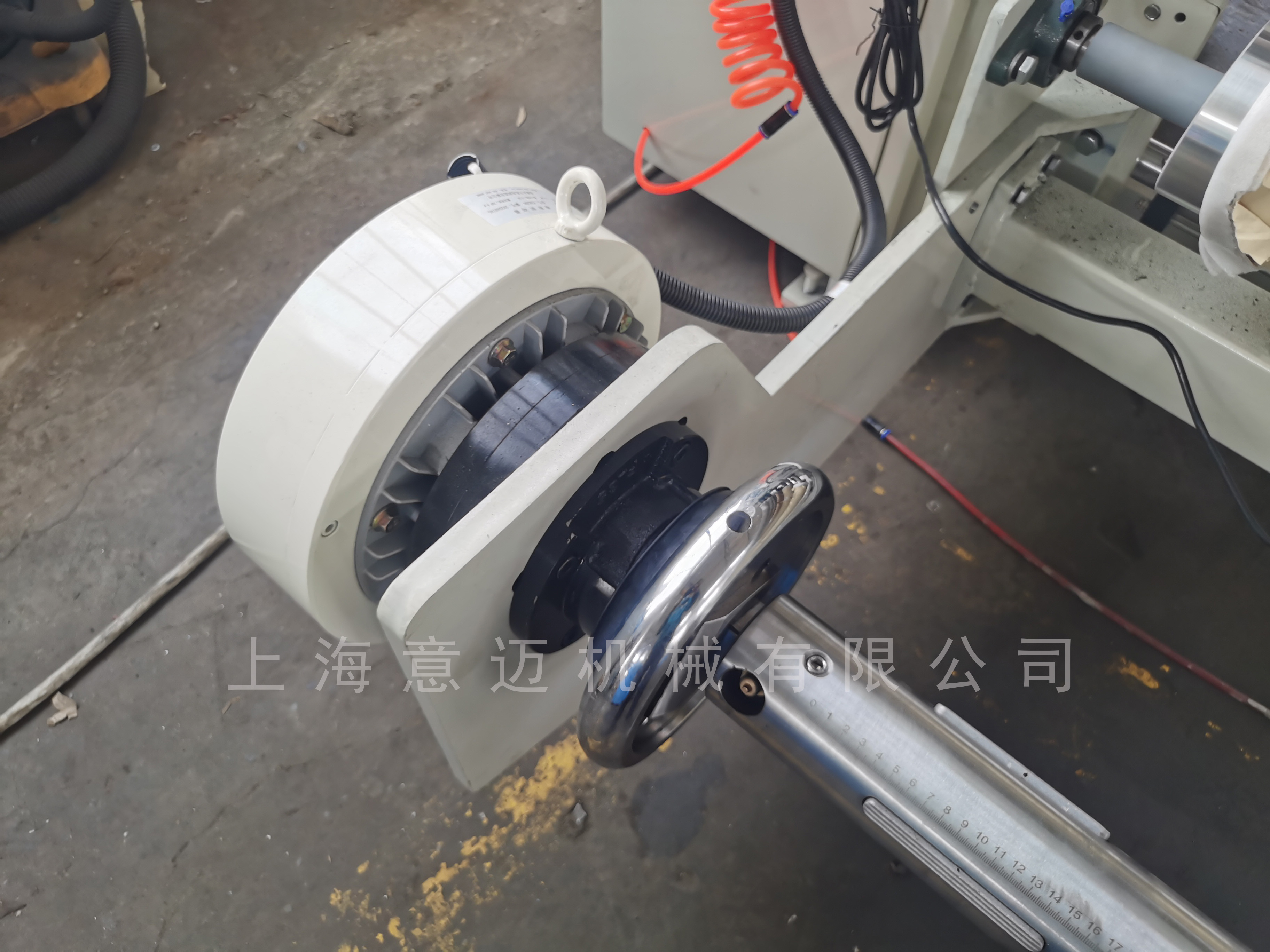

2.一体式放卷机架带磁粉器全自动张力控制。
Full-automatic tension control of integrated unwinding frame with magnetic powder device
3.放卷带光电对边(EPC)和布边松紧调节装置。
Electro-optical edge (epc) and selvage tightness adjusting device for unwinding tape
4.收卷单摩擦中心双传动,带磁粉器锥度张力控制。
Winding single friction center double drive, with taper tension control of magnetic powder device
5.收放卷气胀轴,机架钢板结构,外侧安装罩壳。
The unwinding inflatable shaft has a frame steel plate structure, and the outer side is provided with a cover.

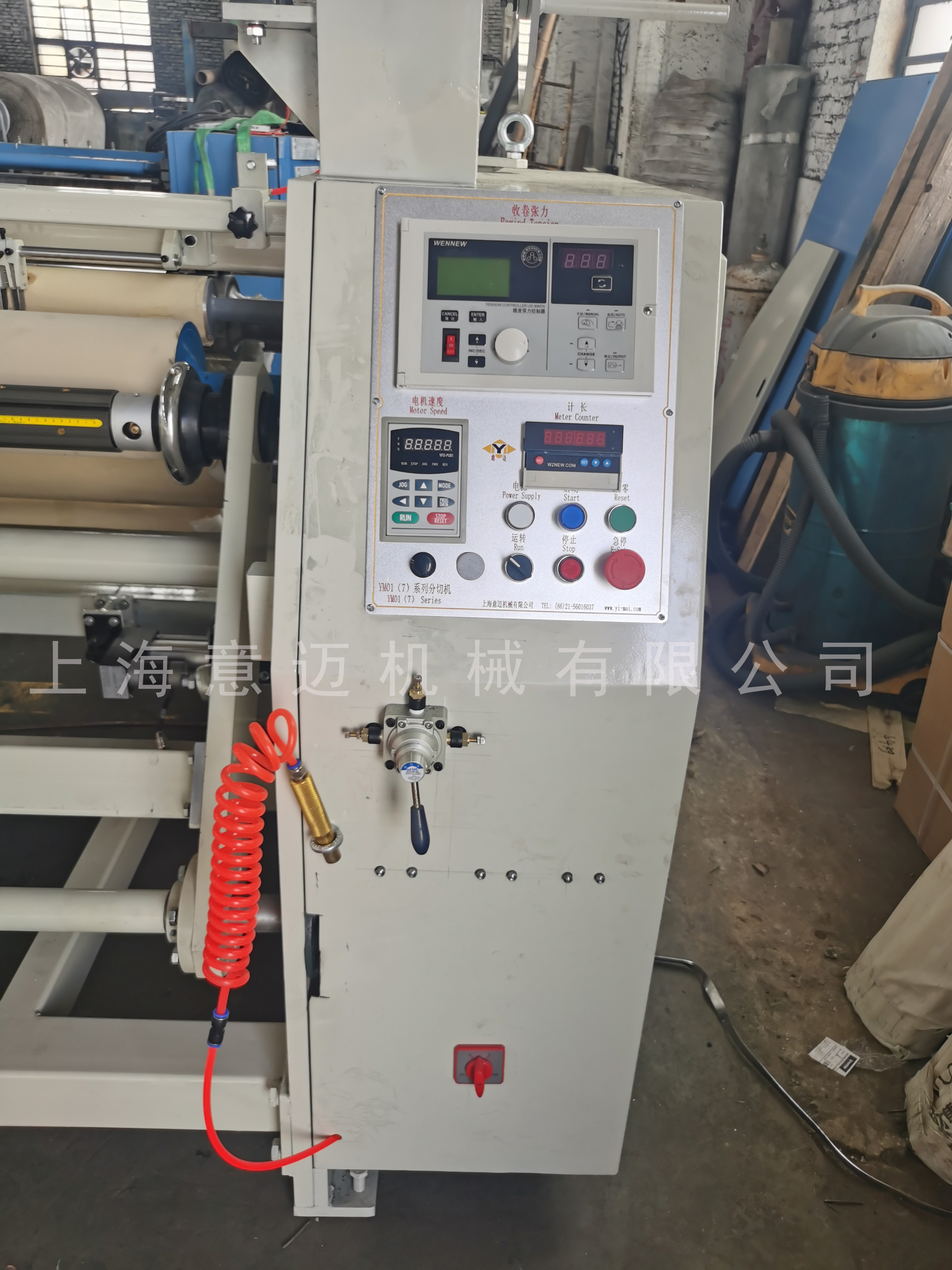

6.传动变频器,数显计米带定长停机。
Drive frequency converter, digital display meter with fixed length stop
7.机械式废边卷绕装置。
Mechanical waste edge winding device
主要技术参数 Main technical parameters
|
项目 project |
参数 parameter |
|
辊面幅宽(mm) Width of material/roll surface |
2500~3500 |
|
分切宽度(mm) Cutting width |
≥5O |
|
放卷最大直径mm Maximum unwinding diameter |
Φ1000 |
|
收卷最大直径(mm) Maximum winding diameter |
Φ600~Φ800 |
|
设计车速(m/min) Design speed |
5~100 |
