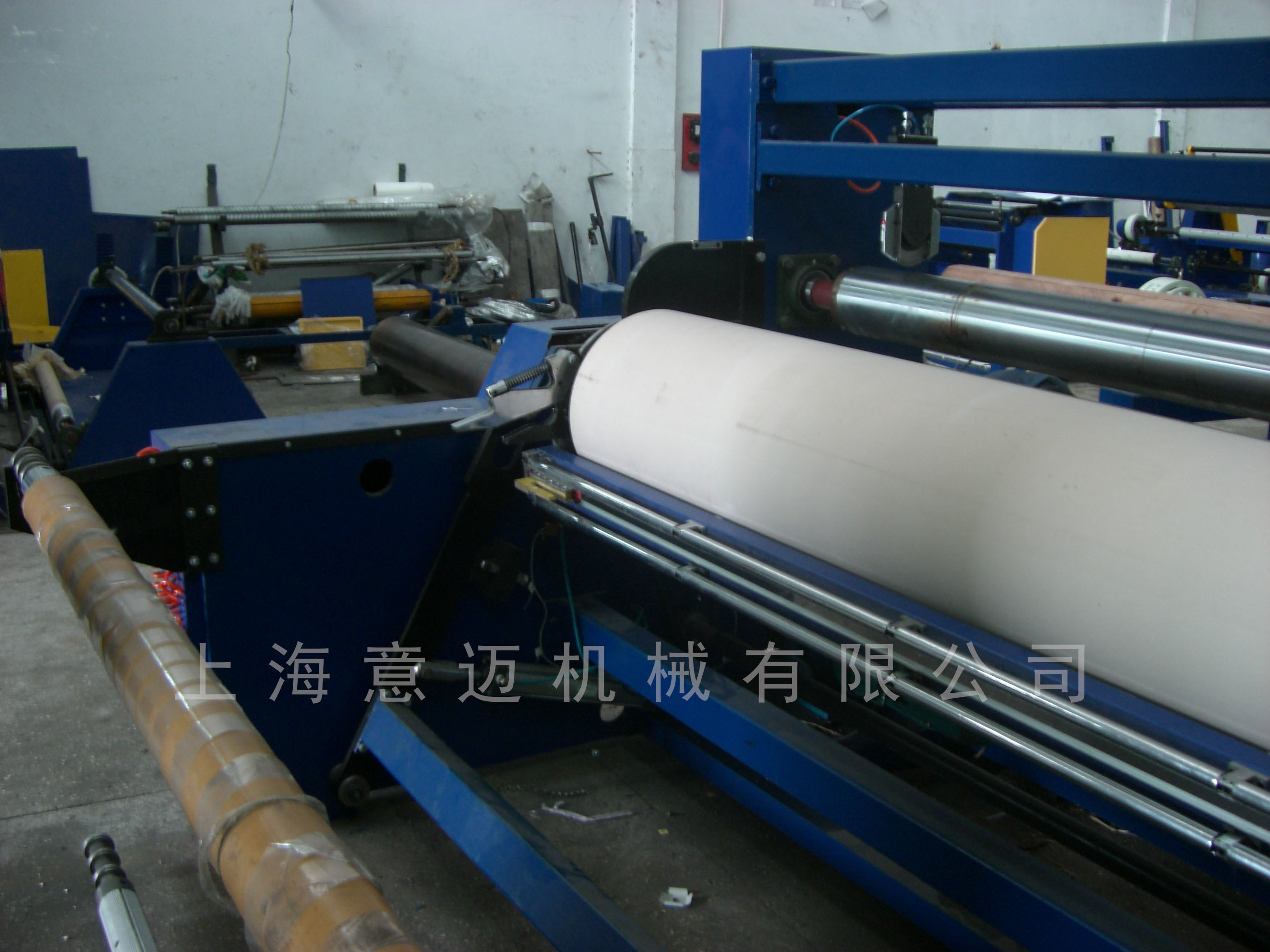

YM76C全自动卷绕机 YM76C Fully Automatic Winding Machine
产品用途：本产品适用于无纺,无纺复合等生产线的切边,卷绕栽断及自动落卷,也可作为独立的全自动分切卷绕裁断自动落卷设备。
product usage：This product is suitable for trimming, winding, cutting and automatic unwinding of nonwoven and nonwoven composite production lines.It can also be used as an independent automatic slitting, winding, cutting and automatic unwinding equipment.
特点:
characteristic
1.整机全自动运转,显示屏计长仪能定长自动裁断,自动落卷换卷。
The whole machine runs automatically, and the display length meter can automatically cut the length and automatically drop and change the volume.
2.切边前有涨力架控制切边涨力。
Before trimming, there is an expansion frame to control the expansion force of trimming.
3.气刀式切边装置在生产时可用手轮调节切边门幅。
The air knife trimming device can adjust the trimming width by handwheel during production.
4.卷绕式和风机式废边处理装置任意选择。
Arbitrary selection of winding and fan waste edge treatment devices
5.橡胶辊摩擦收卷,收卷涨力采用气压调节。
Rubber roller friction winding, the winding force is adjusted by air pressure.
6.收卷键槽式气涨轴,换卷方便。
Take-up keyway type inflatable shaft, which is convenient to change coils.
7.显示屏计长仪,变频调速。
Display length meter, frequency conversion speed regulation
主要技术参数:
Main technical parameters
|
项目project |
参数 parameter |
|||
|
辊面幅宽(mm) Width of material/roll surface |
1500 |
1800 |
2300 |
2500 |
|
卷绕最大直径(mm) Maximum winding diameter |
Φ100~1200 |
|||
|
切刀最大直径(mm) Maximum diameter of cutter |
Φ150 |
|||
|
装机容量(KW) installed capacity |
6 |
9 |
||
|
设计车速(m/min) Design speed |
10~100 |
|||
