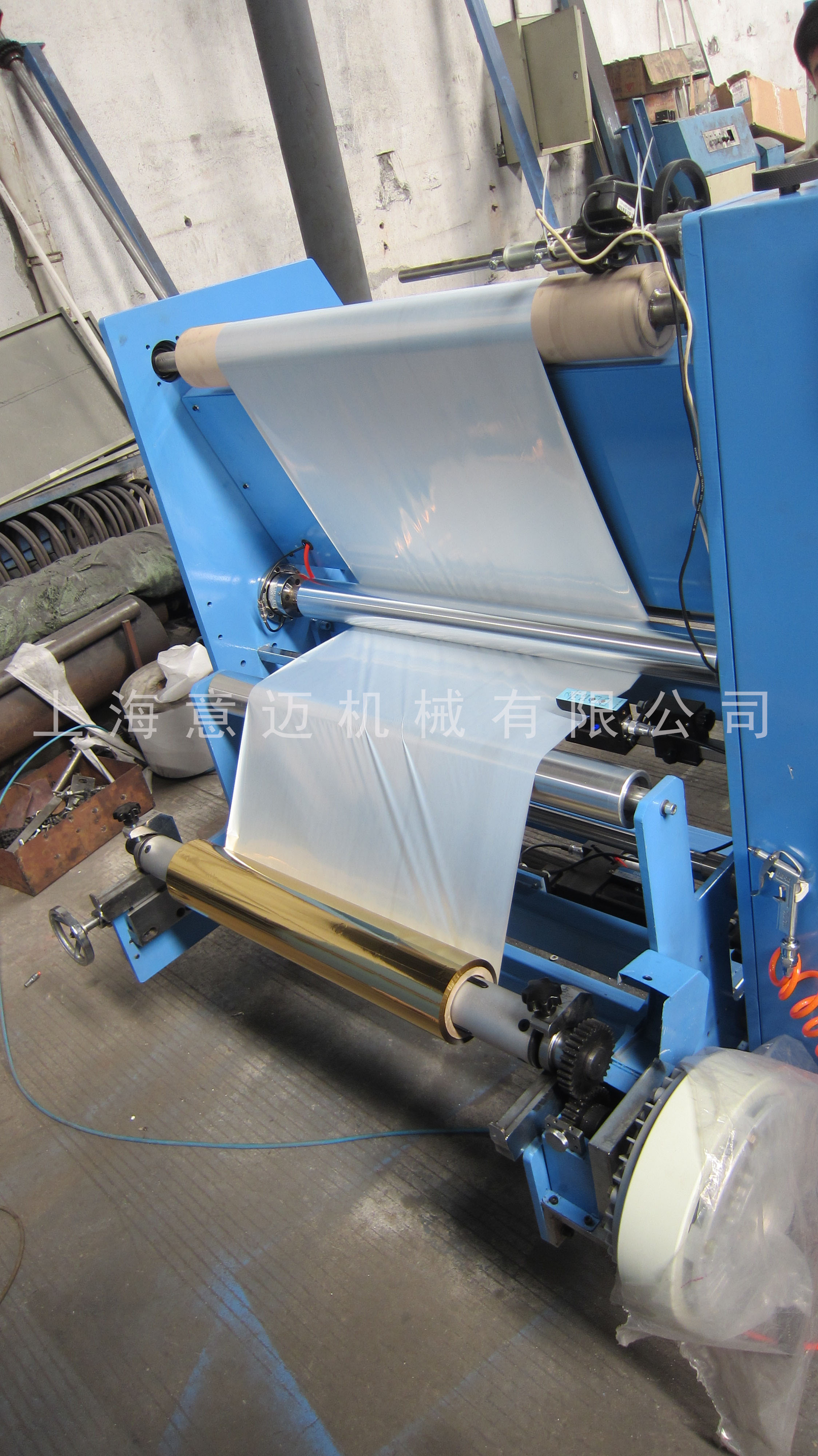

YM12B2型复卷机 YM12B2 Rewinding Machine
产品用途：适用于卷筒薄膜,低张力等材料大卷复小卷。
product usage：Suitable for reel film, low tension and other materials.
特点:
characteristic
1.放卷磁粉器全自动张力控制。
Full-automatic tension control of unwinding magnetic powder device

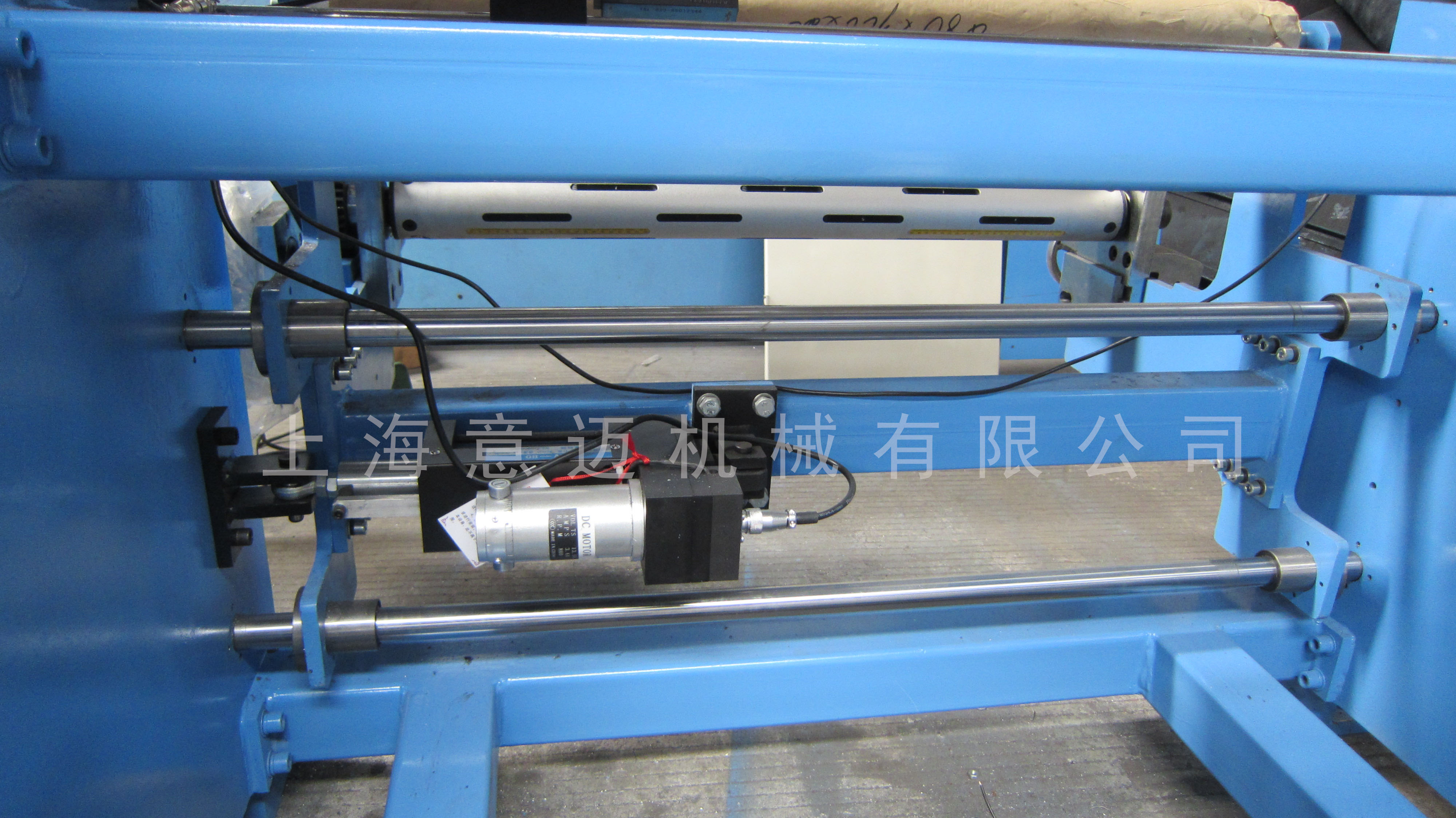

2.放卷带光电对边(EPC),布边松紧调节装置。
Electro-optical edge (epc) and selvage tightness adjusting device for unwinding tape.
3.收卷气胀轴,拆装式卸料。
Winding inflatable shaft, dismountable unloading.

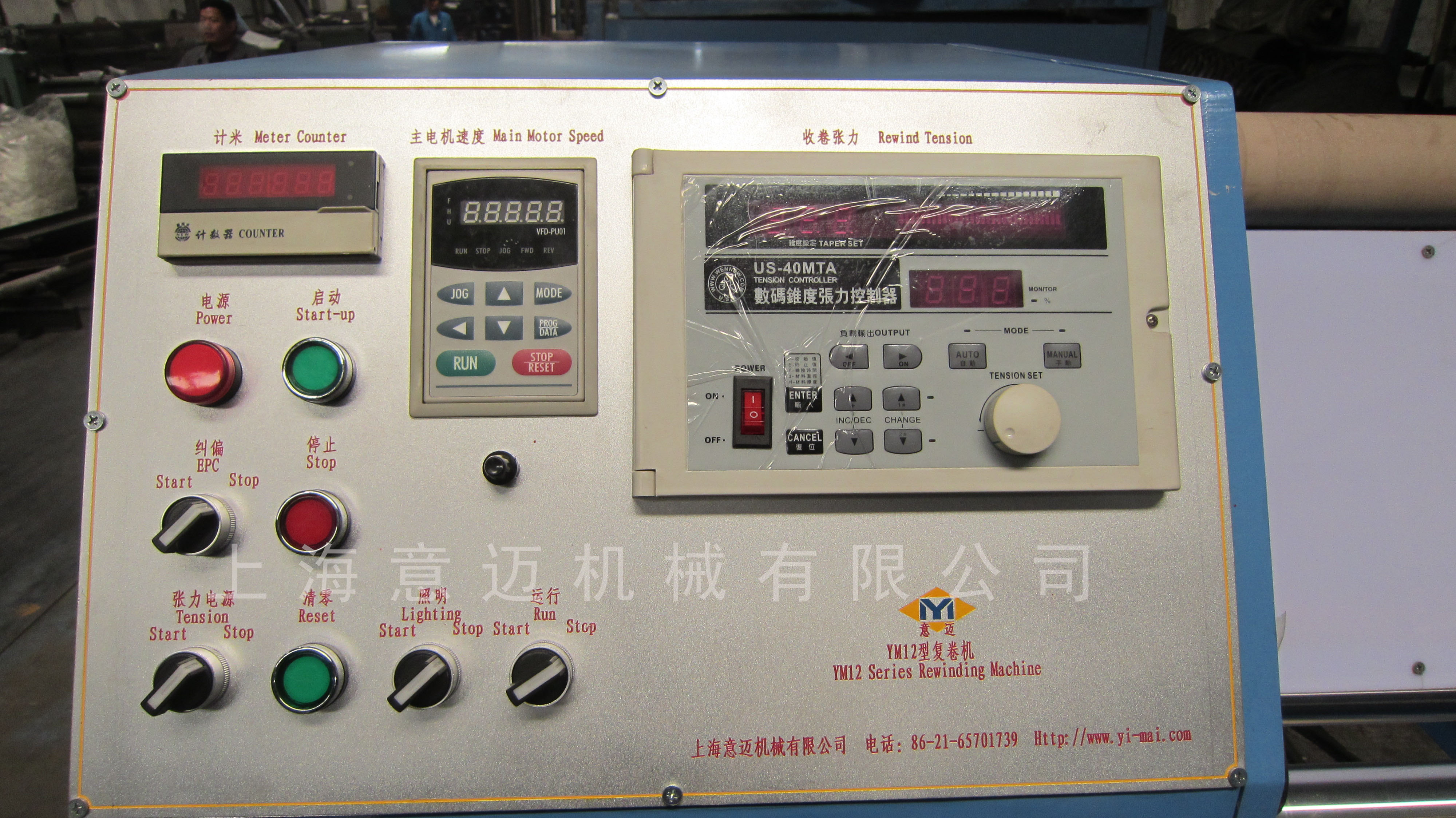

4.收卷传动矢量变频控制,张力可调,数显计米定长停机。
Vector frequency conversion control of winding drive, adjustable tension, digital display meter fixed length stop
5.机架钢板结构,侧面罩壳,表面喷塑。
Frame steel plate structure, side shell, surface plastic spraying.
主要技术参数:
Main technical parameters
|
项目project |
参数parameter |
|
辊面尺寸(mm) Width of material/roll surface |
900 1300 |
|
材料厚度(mm) Material thickness |
0.02~ 0.2 |
|
放卷最大直径(mm) Maximum unwinding diameter |
φ600 |
|
收卷最大直径（mm） Maximum winding diameter |
φ200~φ300 |
|
装机容量(KW) installed capacity |
3kw |
|
外形尺寸(mm) outline dimension
|
(有效门幅+950×1150×1310)(LXWXH） |
|
重量(kg) weight |
2000 |
|
设计车速(m/min) Design speed |
80 |
