YM10B6冷热分切机 YM10B6 cold and hot slitting machine
产品用途：适用于无纺布,化纤布,化纤复合材料,薄膜等热分切封边复卷
product usage：Suitable for hot cutting, edge sealing and rewinding of non-woven fabrics, chemical fiber cloth, chemical fiber composite materials and films.
特点:
characteristic

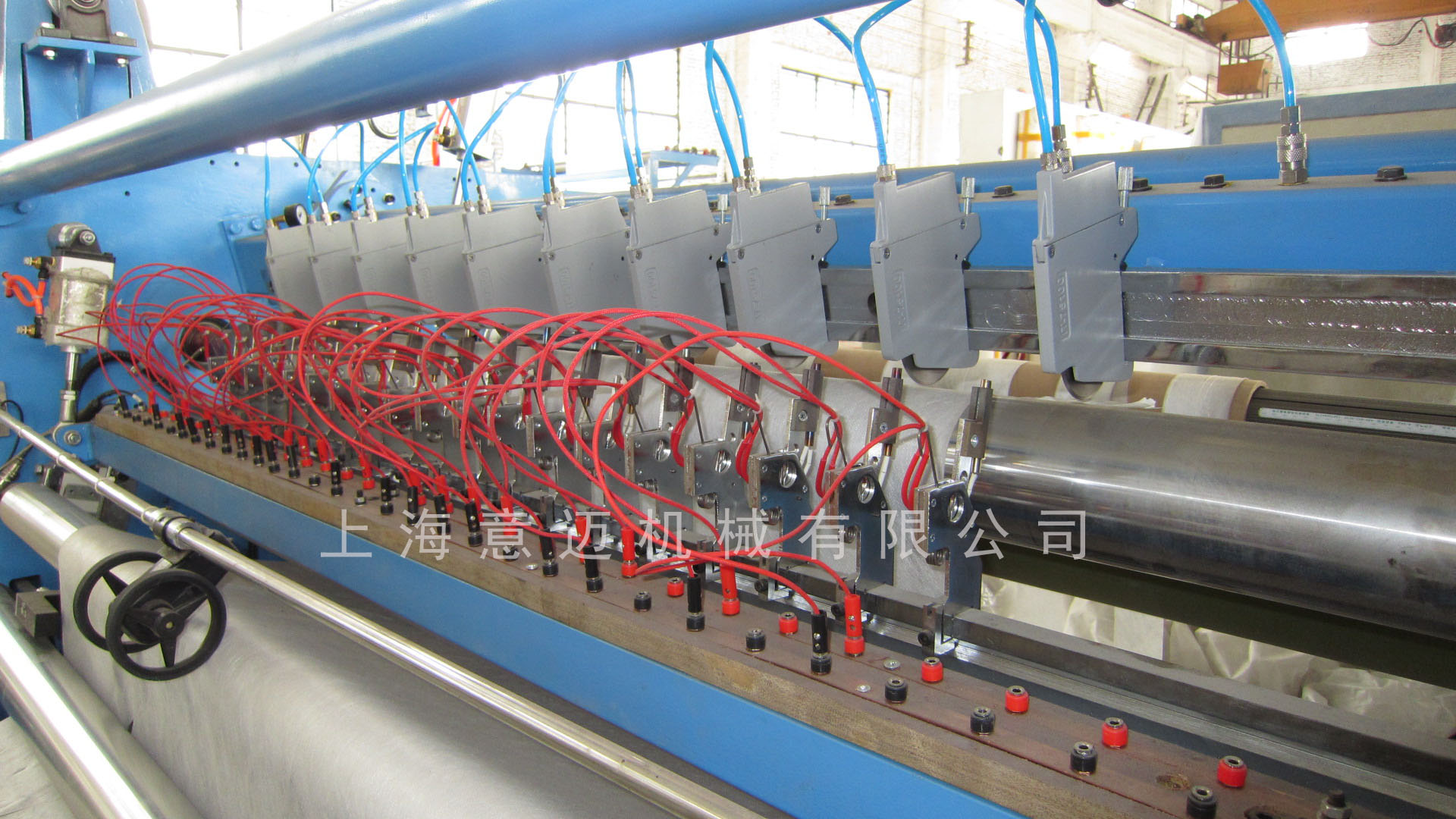

1.采用气压式热切刀,气压冷切刀,低电压温控(两用)
Adopt air pressure hot cutter, air pressure cold cutter and low voltage temperature control (dual-purpose)
2.一体式放卷带磁粉器,全自动张力控制。
Integrated magnetic powder unwinding device with automatic tension control.
3.放卷带光电对边(EPC),布边松紧调节装置。
Electro-optical edge (epc) and selvage tightness adjusting device for unwinding tape.
4.收卷中摩擦心双传动,磁粉器锥度张力控制。
Friction center double drive in winding, taper tension control of magnetic powder device
5.传动变频器控制,数显计米定长停机。
Drive frequency converter control, digital display meter fixed length stop
6.收放卷铝合金气胀轴。
Unwinding and unwinding aluminum alloy inflatable shaft
7.机架钢板结构,两侧罩壳,表面喷塑。
Frame steel plate structure, two sides of the shell, the surface spray plastic.
8.机械式废边卷绕装置。
Mechanical waste edge winding device
主要技术参数:
Main technical parameters
|
项目project |
参数parameter |
|
|
辊面幅宽(mm) Width of material/roll surface |
1700 |
2000 |
|
分切最小宽度(mm) Minimum width of cutting |
≥50
|
|
|
放卷最大直径(mm) Maximum unwinding diameter |
ϕ800 |
|
|
收卷最大直径(mm) Maximum winding diameter |
ϕ200~ϕ500 |
|
|
设计车速(m/min) Design speed |
10~60 |
|
