YM10D玻纤分切机(气刀） YM10D Fiberglass Slitting Machine (Air Knife)

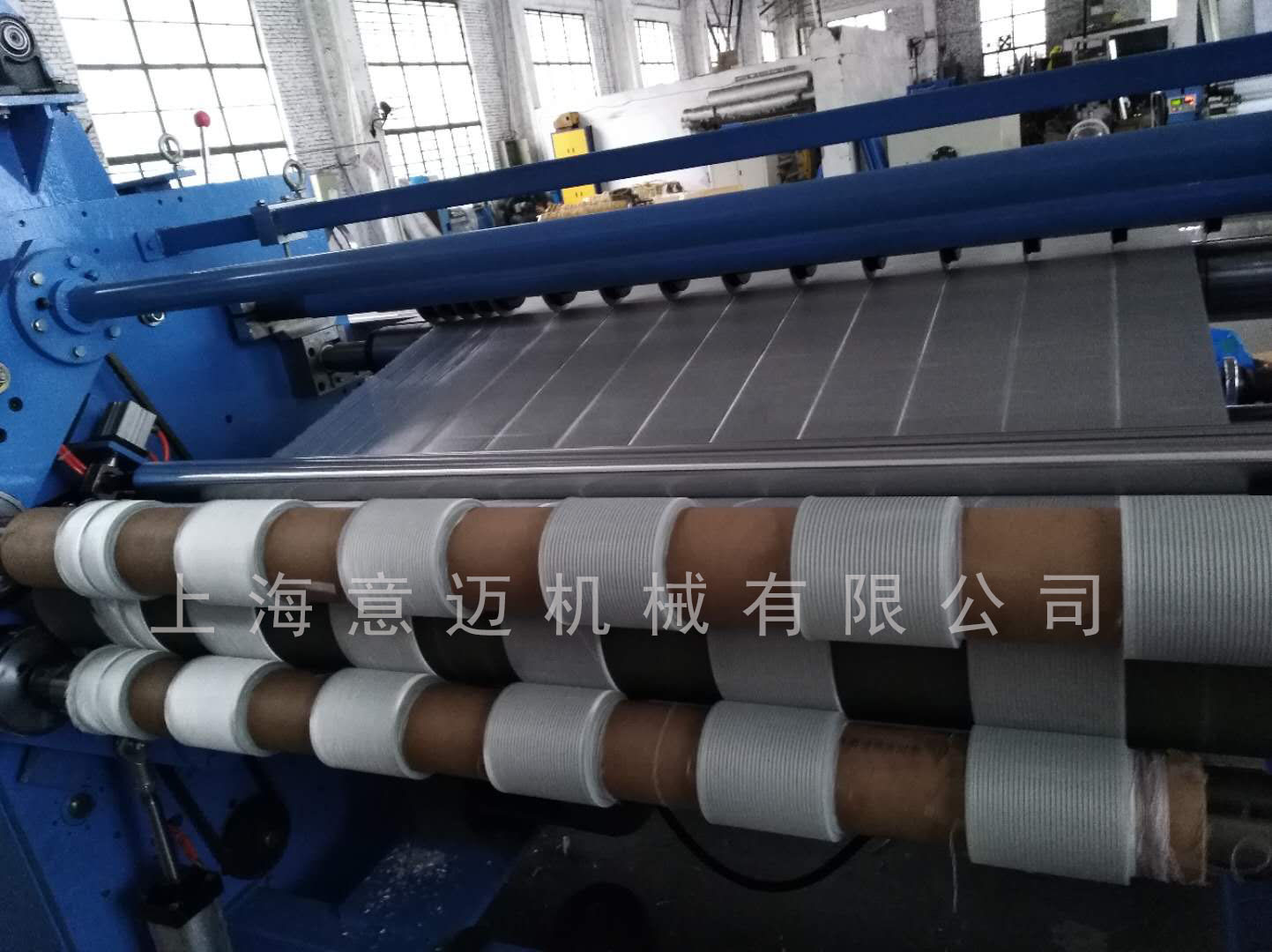

产品用途：用于玻纤布,碳纤维布,针刺工业毡等分切复卷。
product usage：Used for cutting and rewinding glass fiber cloth, carbon fiber cloth, needle punched industrial felt, etc.
特点:
characteristic

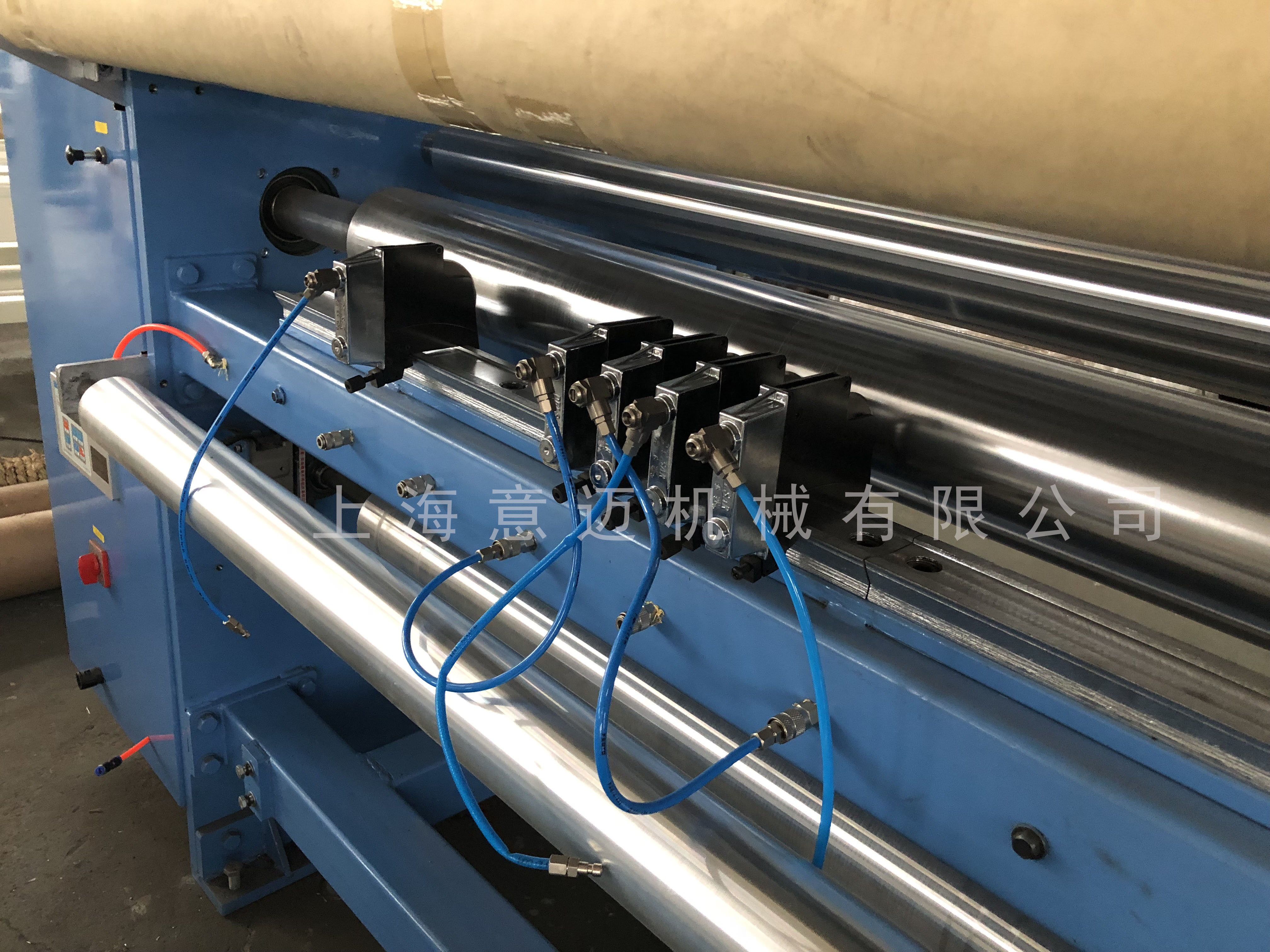

1.选用剪切圆刀或气压式圆刀(选用)。
Choose shearing circular knife or pneumatic circular knife (optional)

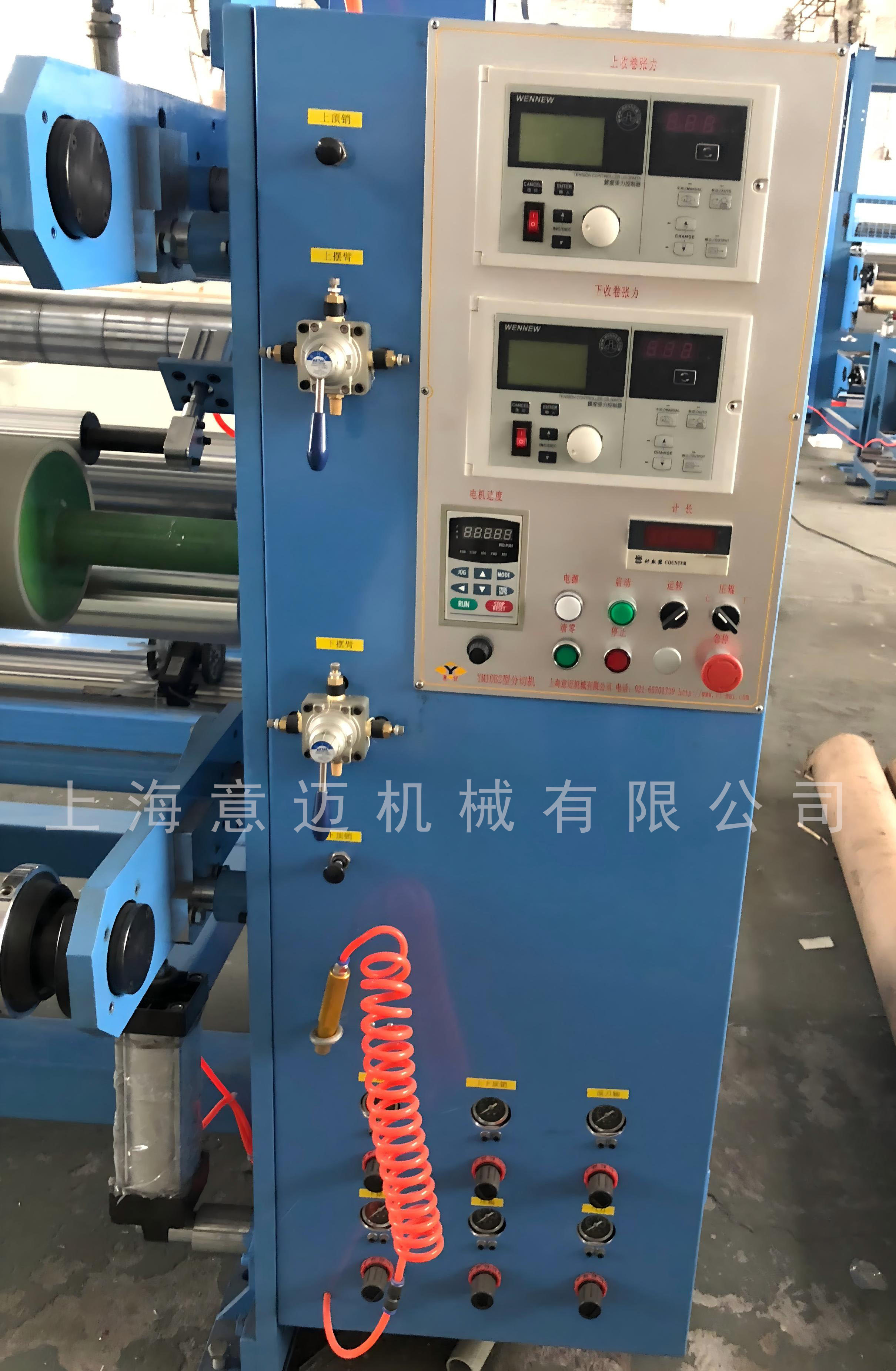

2.放卷带磁粉器全自动张力控制。
Full-automatic tension control of magnetic powder device for unwinding tape
3.放卷带光电对边(EPC)和布边松紧调节装置。
Electro-optical edge (epc) and selvage tightness adjusting device for unwinding tape
4.收卷摩擦中心双传动,带磁粉器锥度张力控制。
Friction center double drive in winding, with taper tension control of magnetic powder device
5.传动变频器,数显计米带定长停机。
Drive frequency converter, digital display meter with fixed length stop
6.收放卷气胀轴,机架钢板结构,外侧安装罩壳。
The unwinding inflatable shaft has a frame steel plate structure, and the outer side is provided with a cover.
7.机械式废边卷绕装置。
Mechanical waste edge winding device
主要技术参数:
Main technical parameters
|
项目 project |
参数 parameter |
|
材料/辊面幅宽（mm）Width of roll surface |
1000~2300 |
|
分切宽度（mm）Cutting width |
10~50 |
|
放卷最大直径(mm) Maximum unwinding diameter |
Φ800 |
|
收卷最大直径(mm) Maximum winding diameter |
Φ300~500 |
|
设计车速(m/min) Design speed |
5~100 |
